Non-intelligent 100-mega-switch HUB

HS-208C Interface: 10/10 x 8

HS-216C Interface: 10/100 x 16

HS-224C Interface: 10/100 x 24

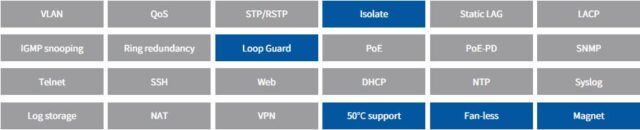

Main supported functions:

Main features:

• In case of loop connection of the LAN cable, the target port is blocked.
  (Multi-port loop detection function support/DIP switch setting)

• Communication between ports other than uplink ports is blocked.
  (Port isolation function support/DIP switch setting)

• Force MDIX SW (DIP switch setting)

• Flow control function support (DIP switch setting)

• Power-saving Ethernet (EEE) support

• AC power cord fastening band (power cord disconnection prevention)

• Fan-less (up to 50°C)

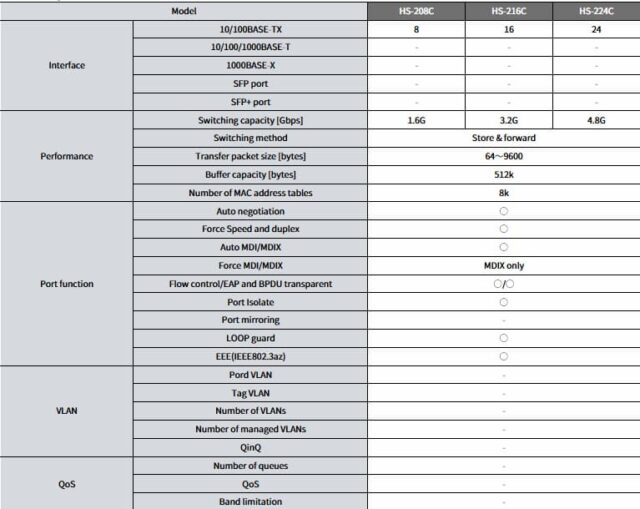

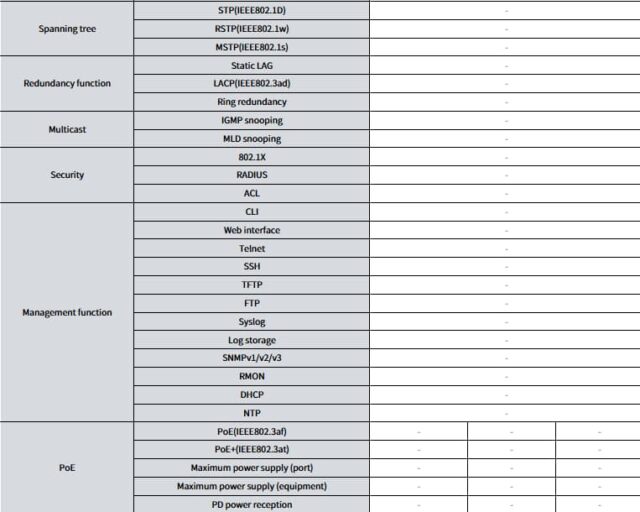

Switch hub specifications:

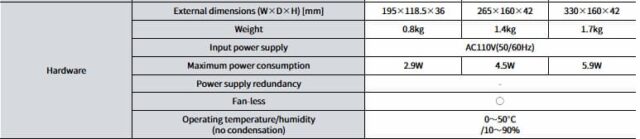

The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
